How To: Display an ArcGIS Server Cached Tile Layer as a Custom Map Type with the Google Maps API for Flash

by James July 06, 2009

Overview

This is the third post in a series where I discuss techniques for interacting with the ArcGIS Server REST API from within a Flex 3 application built with the Google Maps API for Flash. The first and second posts presented and refined an example that demonstrated how to stream features from ArcGIS Server and overlay them on top of Google Maps data. This post demonstrates how to display an ArcGIS Server cached tile layer as a custom map type with the Google Maps API for Flash.

Sample Application Concepts

The sample application works as follows:

  • The Google Maps API for Flash is embedded in a Flex 3 application.

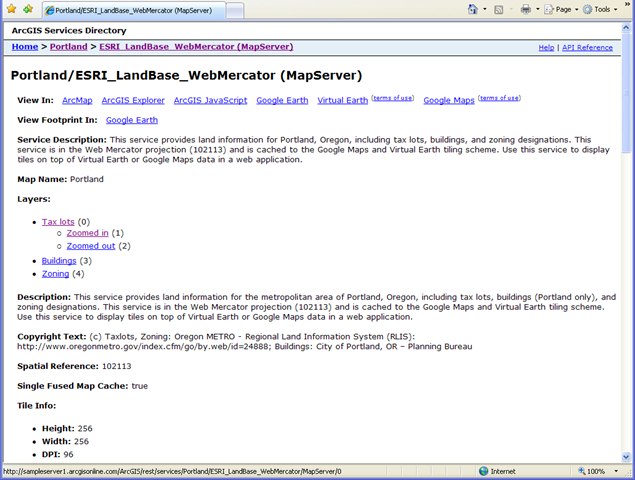

  • A cached tile layer representing Land Base features for Portland, Oregon is served via an ArcGIS Server Map Service, accessible via ArcGIS Server’s REST API.
  • The cached tile layer appears as a custom map type in the Google Maps API for Flash User Interface.

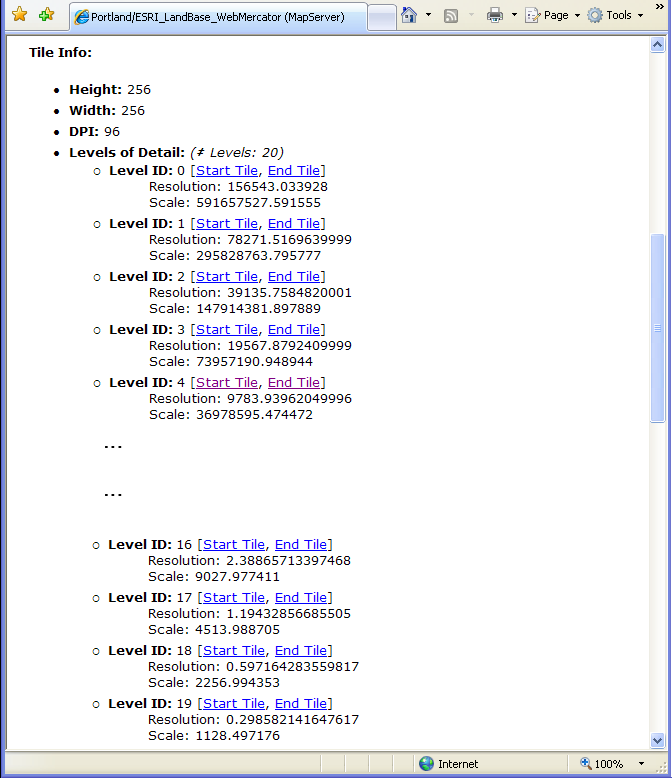

  • The cached tile layer is displayed at zoom levels 0 - 19.

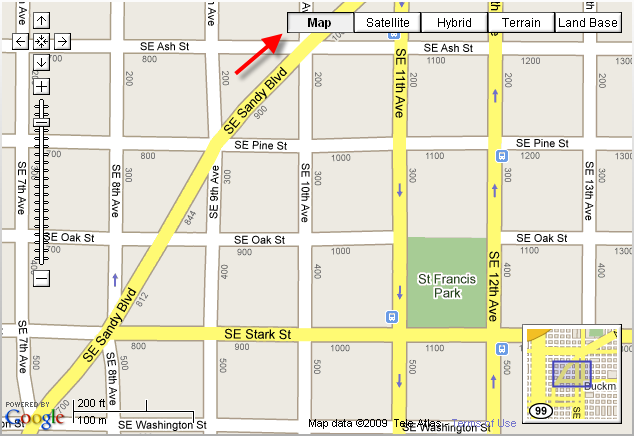

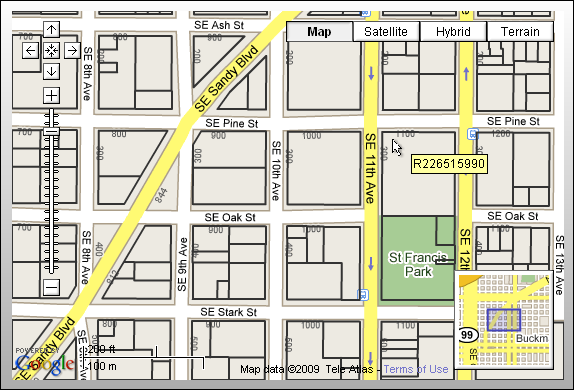

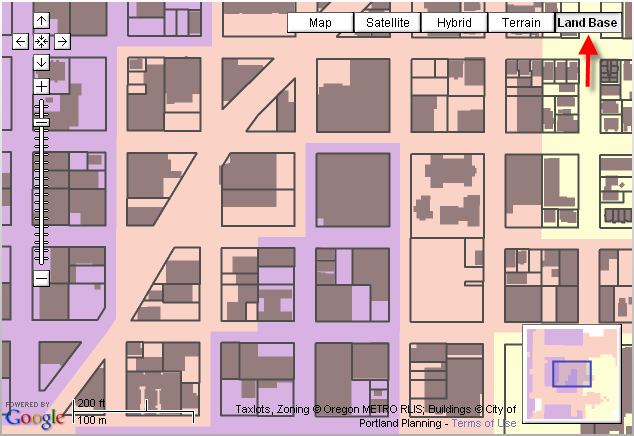

Here are a couple of screen shots of the sample application. The first shows the application with the custom “Land Base” map type selected. The second shows the application with the normal map type selected.



Live example is here, and source code is here. More...

Tags: , , ,

ArcGIS Server | Flex 3 | Google Maps | How To | Planet GS | REST

ArcGIS Server WebADF: Adjusting the Zoom Scale for Find Address Task Results

by James July 02, 2009

Overview

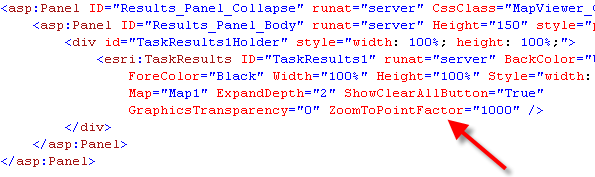

When working with the Find Address Task in the ArcGIS Server WebADF, the default zoom scale that is displayed when the user zooms to a found address might not be what you want. This article discusses how to change it using the ZoomToPointFactor property. More...

Tags: , , ,

.NET | ArcGIS Server | How To | Planet GS | WebADF

Google Maps API for Flash and ArcGIS Server REST API Integration – Part 2

by James June 15, 2009

Overview

This is the second post in a series where I discuss techniques for interacting with the ArcGIS Server REST API from within a Flex 3 application built with the Google Maps API for Flash. If you haven’t read the first post yet, I encourage you to do so now.

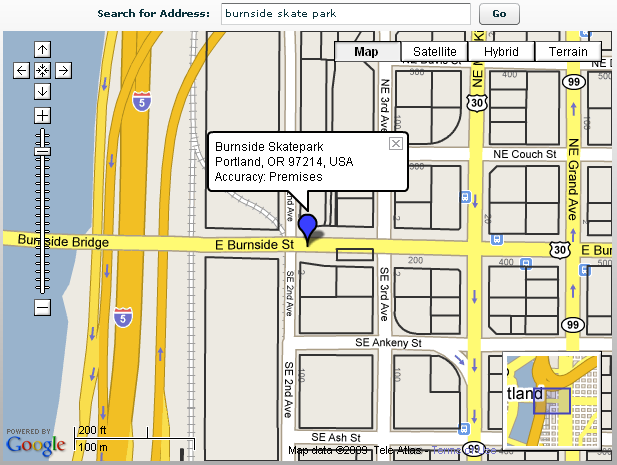

The first post presented a simple example that demonstrated how to stream features from ArcGIS Server and overlay them on top of Google Maps data. In this second post, we will reorganize the code for better reusability and add some geocoding functionality.


I’ll keep this post pretty brief and only cover the major points. Feel free to check out the live example and dive into the source code! More...

Tags: , , , ,

ArcGIS Server | Flex 3 | Google Maps | How To | Planet GS

Google Maps API for Flash and ArcGIS Server REST API Integration – Part 1

by James May 12, 2009

Overview

This is the first post in a series where I will discuss techniques for interacting with the ArcGIS Server REST API from within a Flex 3 application built with the Google Maps API for Flash.

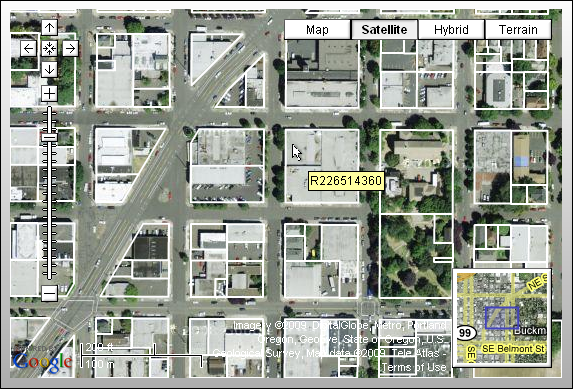

With this post, we start with a simple example that demonstrates how to stream features from ArcGIS Server and overlay them on top of Google Maps data. In this case, we will be working with parcel data.

This first example serves to demonstrate the basic concepts as succinctly as possible. In future posts, I will gradually refactor and improve upon the code to create reusable components. More...

Tags: , , , ,

ArcGIS Server | Flex 3 | Google Maps | How To | Planet GS

Reduce ArcGIS Server Boilerplate Code By Implementing IDisposable

by James April 19, 2009

When programming with ArcObjects and ArcGIS Server, code often follows a common pattern of connecting to ArcGIS Server, getting hold of an IServerContext, doing some work, and releasing the context. This leads to a lot of unnecessarily repeated setup and teardown code, usually taking a form similar to the following example:

IServerContext context = null;

try

{

    IGISServerConnection conn = new GISServerConnectionClass()

        as IGISServerConnection;



    // Connect as ASPNET or NETWORK SERVICE.

    // Get optional host setting from web.config,

    // or use localhost if not found.

    string host = ConfigurationManager.AppSettings["AGSHost"];

    if (String.IsNullOrEmpty(host))

    {

        host = "localhost";

    }



    // Make connection

    conn.Connect(host);

    IServerObjectManager som = conn.ServerObjectManager;

    context = som.CreateServerContext("MyServer", "MapServer");



    // Do some stuff with the server context

}

finally

{

    if (context != null)

    {

        context.ReleaseContext();

    }

}

In this example, there is a lot of boilerplate happening just to get to the server context and do something interesting. Seeing this kind of code repeated throughout an ArcGIS Server project made me a little queasy as it violates the DRY Principle, so that got me thinking about how to eliminate it. More...

Tags: , , ,

.NET | ArcGIS Server | Planet GS
